INDUSTRIAL & COMMERCIAL CEILING FANS:
Envira-NortH
High volume low speed celling fans (HVLS) are durable, quiet, efficient, and extremely popular for their many benefits in providing effective cooling /heating and solving the stratification problem by circulating the air and create a more even temperature throughout the facility.
In cooled weather, the high-level overhead heaters, in industrial and commercial facilities cause overheat the ceiling void to un-necessary high temperature of +100F, while cold air, at workplace level, stay at the floor. Using ceiling fans in winter, creates the air movement to mix heated air trapped at the ceiling level with cold air at the floor resulting in uniform temperatures throughout the space. Also, as a cost-effective solution, heaters do not need to run as frequently to maintain thermostat set points, resulting in energy saving.
Industrial ceiling fans come with variable speed settings, that can be run at low speeds to push the hot air at the ceiling level downward, providing workers with warmer, more comfortable air without creating a perceptible draft.
Also heat de-stratification in industrial spaces can also reduce the time to warm occupant levels to desired temperatures faster then without ceiling fans.
Industrial ceiling fans used in variety of applications such as factories, warehouses, airplane hangars, and high celling commercial and industrial buildings. available in diameters ranging from 8’ to 24’ with a remote keypad to power, speed and the fan’s direction.
Aisle-Air
Designed For: Industrial | Agricultural | High Ceilings
This fan creates a focused air flow of extreme velocity that offers high impact occupant cooling. It also controls insects, keeps floors dry and eliminates temperature differential in tight spaces (such as racking).
Why Choose Aisle-Air Fans?
The minimal foot print enables the Aisle-Air to be utilized in environments where space is at a premium. Flexible mounting options allows the fan to mounted directly on the racking, structural posts or from the ceiling.
Connect the Aisle-Air to your building automation system or utilize the TouchAIR Control for all your Envira-North products.
Benefits of the Aisle-Air Fan
- Air Velocity: Capable of delivering speeds up to 15MPH, ensuring effective air movement across aisles up to 100 feet long!
- Peak Performance: A robust 1600RPM speed for consistent and effective airflow.
- Durability and Control: Rated IP55 with integrated controls, designed for longevity and ease of use.
- Connectivity: Features MODBUS signal compatibility for seamless integration with modern control systems.
- Maintenance-Free Operation: Engineered for minimal upkeep, a reliable and long-term solution.
Specifications
- Up to 15 MPH air speeds
- Covers aisles up to 80’ long
- 200-240V input, 2 A
- 1,600 RPM
- IP55, Integrated controls – MODBUS signal
- Maintenance free
- Up to 23° angle of attack
Alite 3
Designed For: Industrial | Agricultural | High Ceilings
This simple high volume low speed fan design, ideal for industrial settings, provides necessary air movement up to 177,000 CFM. Operating on a 0.75 kW (1 Hp) gear motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Alite 3.
Benefits of Alite 3 HVLS Fans
This cost-effective alternative to traditional high volume low speed fans provides:
- 288 CFM/Watt per 7.1 m (23') fan
- 148 CFM/Watt per 4.7 m (15') fan
Impressive efficiency is possible by this 3-bladed design that minimizes weight while providing continuous air movement throughout the area of influence.
- Cost Effective Alternative
- Nominal Power Consumption
- Inexpensive Operation
- Quiet Performance
- Minimal Maintenance
- Less Weight
Specifications
- Up to 4.5 MPH breeze
- Cost effective alternative
- Nominal power consumption
- Inexpensive operation
- Quiet performance
- Minimal maintenance
- Lightweight
- 18° angle of attack
- 285 CFM per Watt
Allure
Designed For: Commercial | Residential | Institutional
Allure Fans include the Allure72 and the Allure60.
These ceiling fans can be installed in many different spaces, such as the living rooms, dining rooms, bedrooms, and wet locations such as a patio or lanai. Light commercial applications include restaurants, offices, hotels, and resorts.
Specifications
- Available in 60” & 72” diameters
- Brushless DC motor
- Up to 7900 CFM airflow
- Available in black and white
- Dimmable light
- Power consumption – 25 W for Allure72; 20 W for Allure60
- 6 fan speeds
- Fans have 5 blades
- Indoor/outdoor use
- Remote controlled
Altra-Air Geared
Designed For: Industrial | Agricultural | High Ceilings
Altra-Air Sailfin HVLS fans blanket a very large area with constantly moving air to create an expansive comfort zone. As a result, this large ceiling fan can create an evaporative cooling effect of 3 to 4 degrees Celsius throughout the facility.
The Sailfin Advantage
Airfoils don’t change….That is unless you work with Envira-North Systems. Since 2003, we’ve continually searched, tested and modified airfoils to maximize their efficiency – solely for the purpose of moving large volumes of air a low speeds.
Here’s what we’ve done:
- Increased air speeds
- Reduced operating costs
- Decreased noise
- Streamlined appearance
Sailfin represents everything users want in an HVLS Fan, it looks nice, moves a ton of air and consumes very little energy!
Specifications
- Fans range from 3.7 to 7.3 m (12 ft to 24 ft) in diameter
- 6MPH breeze
- Maximum 5.7 Amp draw
- 264 CFM per Watt
- Variable speed operation
- Minimal 2.5" blade flex
- Up to 23° angle of attack
- Less torque from blade efficiency
Gearless Altra-Air
Designed For: Industrial | Agricultural | High Ceilings
Altra-Air Sailfin HVLS fans blanket a very large area with constantly moving air to create an expansive comfort zone. As a result, this large ceiling fan can create an evaporative cooling effect of 3 to 4 degrees Celsius throughout the facility.
The Sailfin Advantage
Airfoils don’t change….That is unless you work with Envira-North Systems. Since 2003, we’ve continually searched, tested and modified airfoils to maximize their efficiency – solely for the purpose of moving large volumes of air a low speeds.
Here’s what we’ve done:
- Increased air speeds
- Reduced operating costs
- Decreased noise
- Streamlined appearance
Sailfin represents everything users want in an HVLS Fan, it looks nice, moves a ton of air and consumes very little energy!
Specifications
- Fans range from 3.7 to 7.3 m (12 ft to 24 ft) in diameter
- Built-in 20,000 Lumen LED light
- 6MPH breeze
- Only two moving parts – zero maintenance
- Minimal 2.5" blade flex
- Whisper quiet
- Less torque from blade efficiency
Hurricane
Designed For: Industrial | Commercial | Institutional

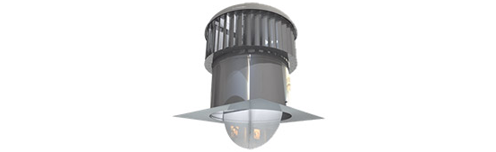

The Hurricane™ Turbine is a wind driven roof exhaust fan. This natural turbine ventilator is an alternative to traditional industrial ventilators that perform poorly and consume energy.
Hurricane™ Turbine ‘Natural Powered Exhaust Units’
Several different products are available, but the wind driven gravity turbine vent is the most impressive. Distinguishing itself by being the largest and most efficient wind driven gravity vent in the world, the Hurricane™ ventilator will provide years of quiet, cost-effective service. The Hurricane™ turbine is fire rated and also carries an astounding 15-year warranty!
Specifications
- Rounded dome to prevent weather ingress
- Lightweight aluminum head assembly
- Variable speed 0-120 RPM
- Outperforms competitors
- Unique hybrid ventilators
- Compatible with most BMS systems
- Minimal maintenance
Jazz
Designed For: Industrial | Commercial | Institutional
Jazz Fans stress the strength of feeling comfort. An attractive fan, completely customizable in appearance that makes the desired – achievable. A fan, designed specifically to move air with a non-disruptive, yet continually powerful flow.
Jazz Fan’s Unique Blade Design
Traditional airfoils (or blades) are linear in design and produce greater noise at a particular frequency. Using varying points on the leading edge of the blade spreads the noise or acoustic signature over a greater range of frequencies, virtually eliminating any noise.
As a fan rotates, the tip of a blade spins faster than the fixed point or ‘centre’ creating pockets of minimal air movement directly underneath the fan. The Jazz Fan blade design tackles this challenge with a varying degree angle of attack, never before seen in our industry. Ranging from 6° (tip) to 14° at its greatest point, the Jazz Fan diminishes the resistance against each blade maximizing air movement and minimizing power consumption.
Specifications
- Maximum 7 to 10 ft 2 to 3m) diameter
- Gearless Smart Voltage Motor
- Variable Speed 0-120 RPM
- 45,000 CFM of Air Movement
- Upwards of 5 MPH Breeze & crazy efficient – max 264 W
- Integrated Dimmable LED Light - 1980 Lumens
- On-Board Controls
- Up to 23° angle of attack
- 85 lbs Assembled Weight
- UL, CSA & CE Certified
- Compact Single Box Packaging
- Quieter Than Ambient Noise
Controllers
The main fan control options consist of the following:

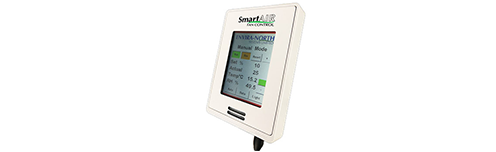

- SmartAIR: a touchscreen control of single fan and multi-fan options
- Single fan option draws power directly from the VFDs
- Multi-fan option requires a separate power supply, and a PLC is included
- TouchAIR: handles up to 20 fans with NEMA4X enclosure and BAS compatibility
- ModAIR: a Lenze VFD with an integrated Modbus module
- Compatible with Smart & TouchAIR controllers
- EssentialAIR: a simplified wall-mounted version with just the Lenze VFD
- CommandAIR: alternative for Schneider VFDs
- Ideal for 575 V applications
- Includes AC Tech VFD and a keypad that allows ground-level control
- ZoneAIR: generally used when using a Low Voltage Control
- Common in agricultural applications
- Jazz Fan HMI: multi-fan capable
- Included with every Jazz fan
- Upgradable to SmartAir or TouchAIR
- Schneider VFD: Premium VFD option. Optimal for 230 V or 460 V applications
Centaxia uses a variety of quality products produced by a number of established North American manufacturers. Please contact us for specific details for your application.
